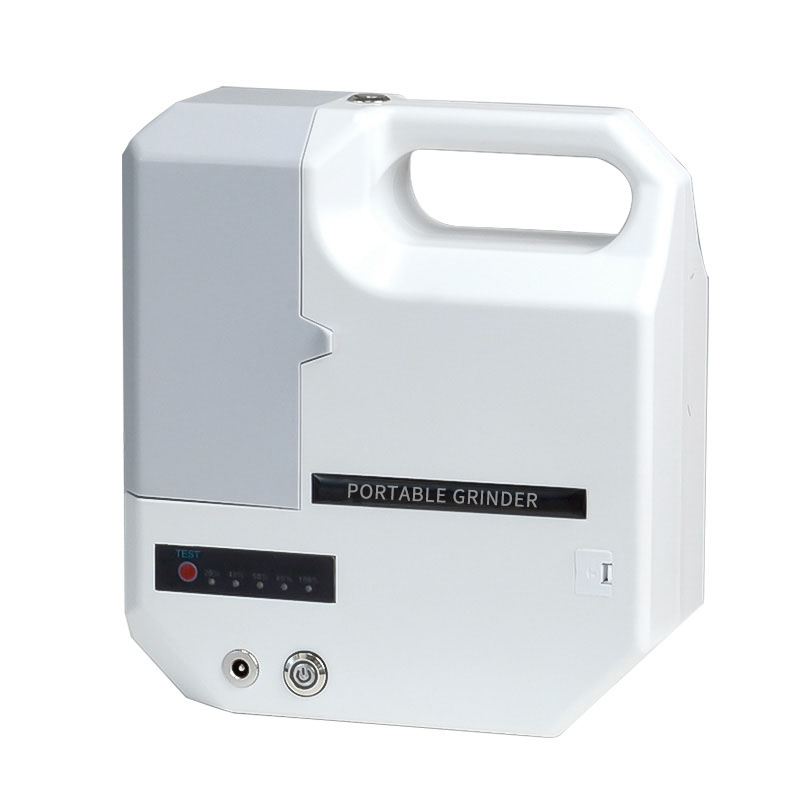

Portable Grinder
- In stock, ready to ship
- Backordered, shipping soon
1. Product Applications
The handheld grinder is suitable for grinding, crushing, and mixing small tissue samples, making it particularly ideal for field operations. It is used for subsequent experiments such as DNA, RNA, protein extraction, and component analysis. It can be applied in various field environments without requiring a flat surface. Equipped with a dual shock-absorption system, it features quick assembly and disassembly of the grinding tube device, and can be either handheld or placed down, effectively addressing on-site work challenges.
Main application fields:
Nucleic acid and protein extraction from biological samples in life sciences
2. Animal Tissues and Pathological Samples in the Hospital Central Laboratory
3. Pharmaceutical company drug metabolism biological sample disruption
4. Judicial Forensic Hair Grinding
5. On-site Grinding of Environmental and Ecological Science Samples
2、 Product Features

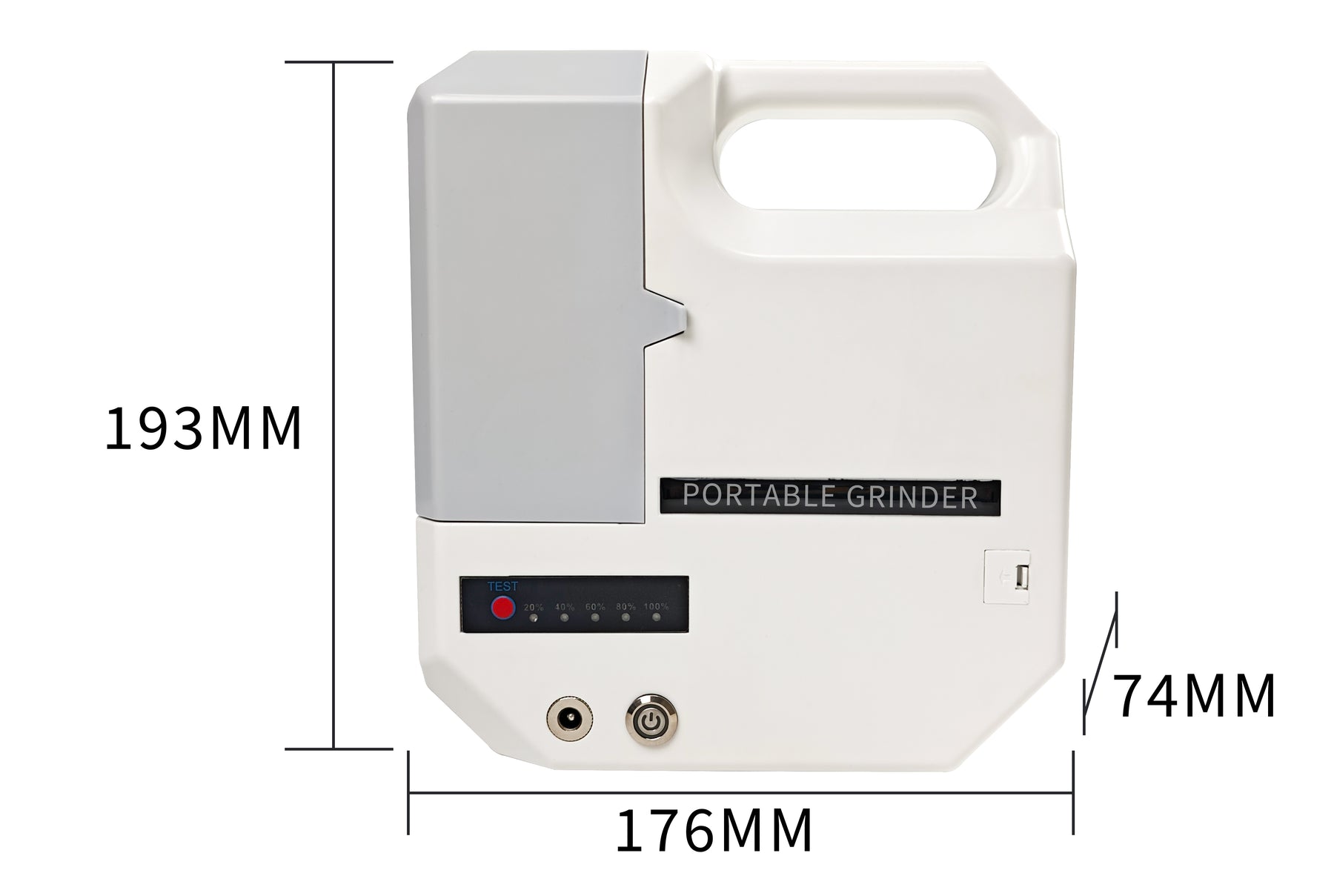

l Small size: 176x74x193mm
l Lightweight: 1.5kg
l Built in rechargeable battery, standby time exceeds 8 hours
l Convenient for outdoor work

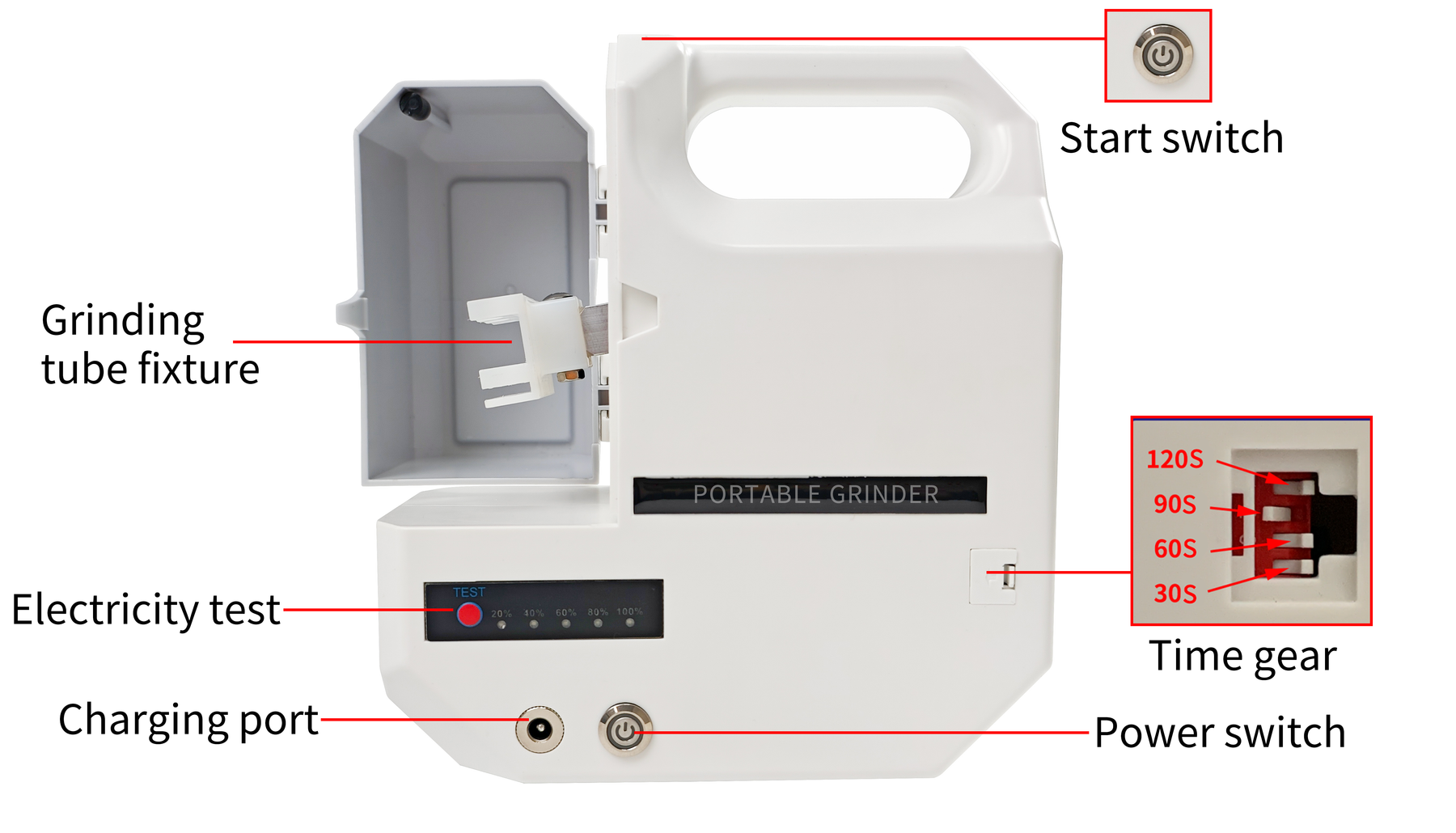

l Quick installation and disassembly fixture design
l Tube installation method: quick press type
l A single charge can produce 200-300 samples
l Dual bearing design, low noise, more durable
3、 Product parameters
|
Model |
YMY-HD |
|
Voltage |
220V to 24VDC |
|
Power |
10-60W |
|
Adapter processing sample size |
3*2ml、2*5ml |
|
Quick disassembly design of adapter fixture |
Can be quickly replaced and maintained |
|
Motor speed |
4100 revolutions per minute; Load, 3720rpm |
|
Rotation deviation |
± 10 revolutions per minute |
|
Mode of exercise |
Three dimensional 8-shaped motion trajectory |
|
Seismic principle |
Patented dual shock absorption system |
|
Grinding method |
Wet grinding, dry grinding |
|
Arm fixing method |
Polyurethane connection fixation |
|
Maximum feed size |
Adjust according to the grinding tube |
|
Safety protection |
safety buckle |
|
Power supply method |
Adapter+built-in power bank with built-in 24V rechargeable battery, compatible with 24V power bank |
|
Working hours |
30, 60, 90, 120 seconds, 4 time modes |
|
Acceleration/deceleration |
Achieve maximum/minimum speed within 0.5 seconds |
|
Noise level |
<50dB (unloaded) |
|
Overall dimensions |
176*74*193mm |
|
Weight (including built-in rechargeable battery) |
1.5KG |
4、 Standard configuration packing
|
Host |
1 |
|
Suitcase |
1 |
|
Power adapter |
1 |
|
Operation Manual |
1 |
